    X-band Cavity Filter

      X-band Cavity Filter

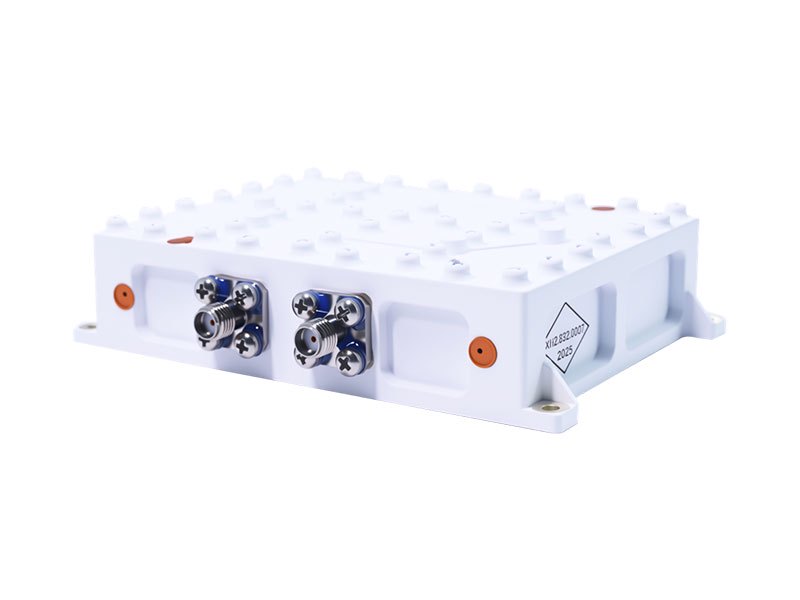

      This X-band cavity filter adopts a cavity filter structure with a bandwidth of 40 MHz. The insertion loss of the product is less than 0.5 dB, and the out-of-band rejection is greater than 100 dB.Its low-pressure power handling capability exceeds 4 W. It is used to filter processor signals and provide out-of-band rejection. The product features a compact structure, with an SMA Female coaxial RF interface.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    This X-band cavity filter adopts a cavity filter structure with a bandwidth of 40 MHz. The insertion loss of the product is less than 0.5 dB, and the out-of-band rejection is greater than 100 dB.Its low-pressure power handling capability exceeds 4 W. It is used to filter processor signals and provide out-of-band rejection. The product features a compact structure, with an SMA Female coaxial RF interface.

    Technical Specifications

    Parameters

    Min.

    Typ.

    Max.

    Units

    Center Frequency

    8.XX

    GHz

    Bandwidth

    ±20

    MHz

    Insertion Loss

    0.5

    dB

    Out-of-Band Rejection

    ≥100@7.145GHz~7.190GHz

    dB

    VSWR

    1.3:1

    Input Power

    36

    dBm

    Operating Temperature Range

    -35

    +70

    ˚C

    Main Body Material

    Aluminum Alloy

    Surface Treatment

    White Paint

    Size

    104*88*25.5

    mm
