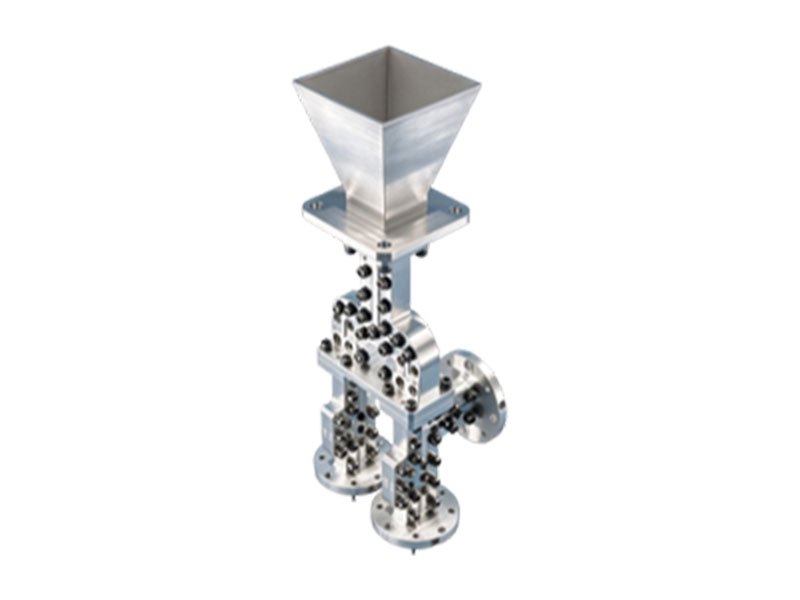

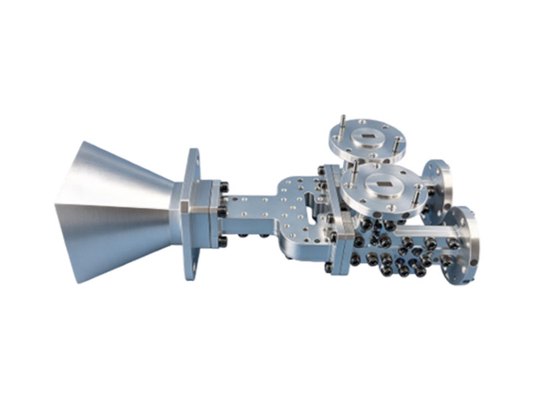

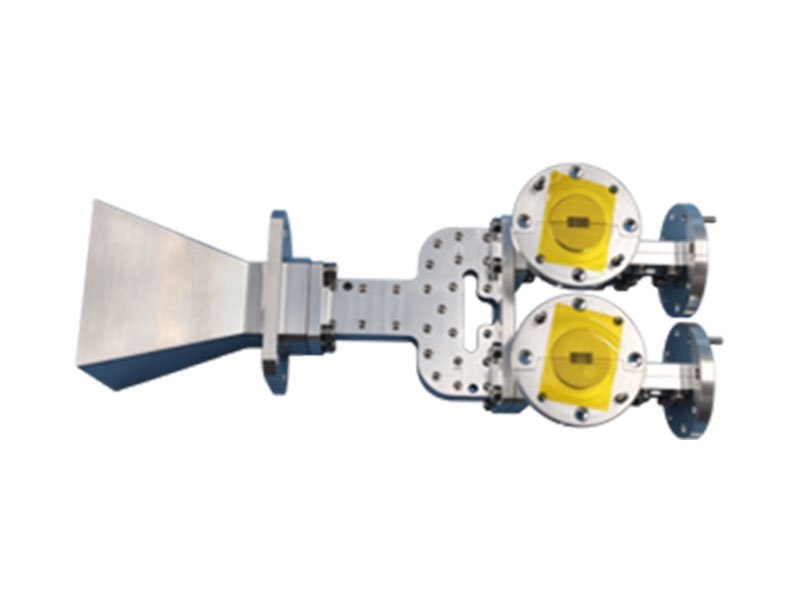

      The QV-band Horn Antenna consists of one horn antenna and two duplexers. The transmit frequency bands are 41.5~42.5 GHz, while the receive frequency band is 50.4~51.4 GHz. It realizes the transmission and reception of right-hand circularly polarized (RHCP) signals and left-hand circularly polarized (LHCP) signals. The isolation between transmit and receive channels is greater than 70 dB. The antenna RF interface consists of two BJ400 and two BJ500 standard waveguide ports.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    The QV-band Horn Antenna consists of one horn antenna and two duplexers. The transmit frequency bands are 41.5~42.5 GHz, while the receive frequency band is 50.4~51.4 GHz. It realizes the transmission and reception of right-hand circularly polarized (RHCP) signals and left-hand circularly polarized (LHCP) signals. The isolation between transmit and receive channels is greater than 70 dB. The antenna RF interface consists of two BJ400 and two BJ500 standard waveguide ports.

    Technical Specifications

    Parameters

    TX

    RX

    Units

    Frequency Range

    41.5~42.5

    50.4~51.4

    GHz

    VSWR

    ≤ 1.3

    ≤ 1.3

    /

    Gain

    ≥20

    dBi

    Axial Ratio

    ≤ 3

    dB

    Tx-Rx Isolation

    Tx to Rx rejection ≥ 70

    Rx to Tx rejection ≥ 70

    dB

    Polarization

    LHCP&RHCP

    LHCP&RHCP

    /

    Element Dimensions

    146.7 × 59 × 50.5

    mm

    Surface Treatment

    Silver Plating

    Port Connector

    BJ400

    BJ500
