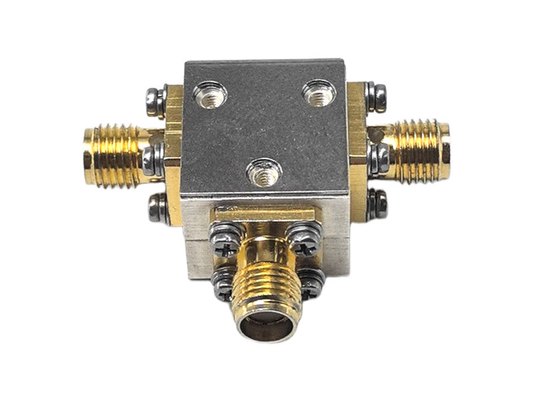

    Ka band Coaxial Circulator

      Ka band Coaxial Circulator

      The circulator is a microwave passive device based on ferrite non-reciprocal effect . Its core function is to realize directional transmission of electromagnetic wave signal, separate transmit and receive signals, protect power amplifiers from reflected power . The product is equipped with standard waveguide /coaxial /microstrip port as its RF interface.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    The circulator is a microwave passive device based on ferrite non-reciprocal effect . Its core function is to realize directional transmission of electromagnetic wave signal, separate transmit and receive signals, protect power amplifiers from reflected power . The product is equipped with standard waveguide /coaxial /microstrip port as its RF interface.

    Technical Specifications

    Parameters

    Min.

    Typ.

    Max.

    Units

    Freq Range

    29.5

    30.5

    GHz

    Insertion Loss

    0.65

    dB

    VSWR

    1.25:1

    Isolation

    20

    dB

    Forward Power

    10

    W

    Impedance

    50

    Ω

    Operating Temperature Range

    -30

    +70

    ˚C

    Connector

    2.92mm Female

    Direction

    P1→P2→P3
