    Low Noise Amplifiers

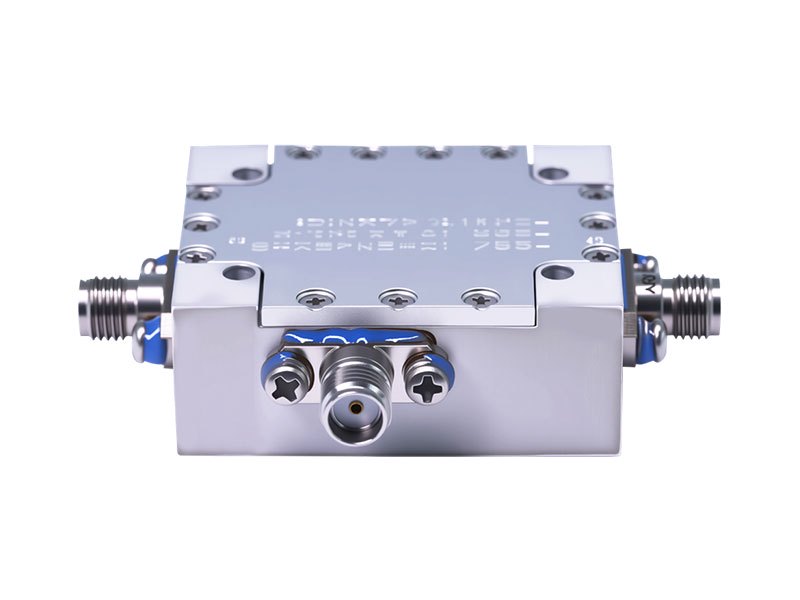

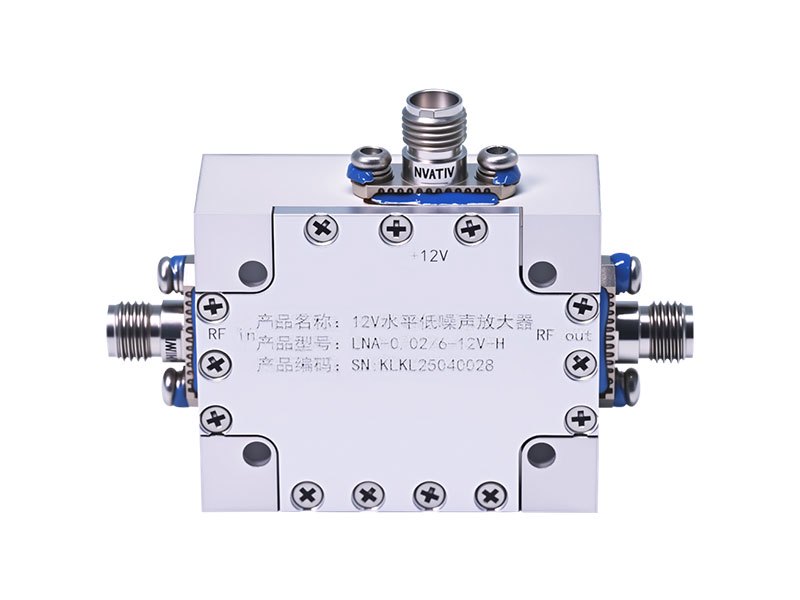

    Wideband Low-Noise Amplifier

      Wideband Low-Noise Amplifier

      Broadband Low-Noise Amplifier with a frequency range covering 20 MHz to 6 GHz. The product provides a gain of 20 dB to 25 dB and an in-band noise figure of 3.5 dB. It is powered by a single +12 V supply. Both the RF interface and power supply interface are SMA female.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    Broadband Low-Noise Amplifier with a frequency range covering 20 MHz to 6 GHz. The product provides a gain of 20 dB to 25 dB and an in-band noise figure of 3.5 dB. It is powered by a single +12 V supply. Both the RF interface and power supply interface are SMA female.

    Technical Specifications

    Item

    Technical Specification

    Operating Frequency

    0.02~ 6 GHz

    Gain

    20 dB ~ 25 dB(at room temperature)

    Input VSWR

    <2

    Output VSWR

    <2

    Noise Figure

    ≤ 3.5 dB

    Output 1 dB Compression Point

    17 dBm @ 2 GHz / 15 dBm @ 6 GHz

    Power Consumption

    ≤ 1.0 W

    Operating Voltage

    +12 V

    Operating Temperature

    -40 ℃ ~ +75 ℃

    Storage Temperature

    -50 ℃ ~ +105 ℃

    Outline Dimensions (L×W×H)

    39 mm × 32 mm × 15 mm (tolerance ±0.2 mm)

    RF Interface

    SMA-Female

    Power Interface

    SMA-Female

    Housing Coating

    Natural conductive oxidation

    Circuit Board Coating

    Conformal coating

    ESD Protection Level

    ≥ 8000 V
