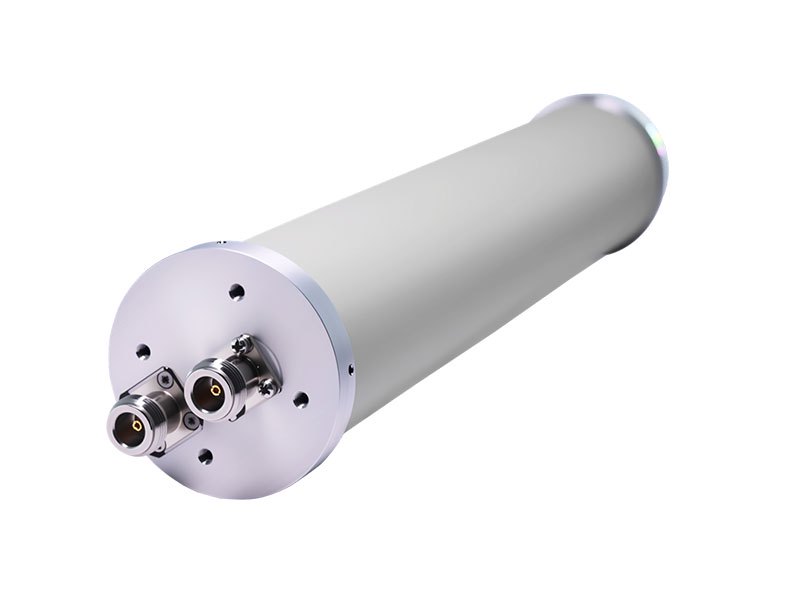

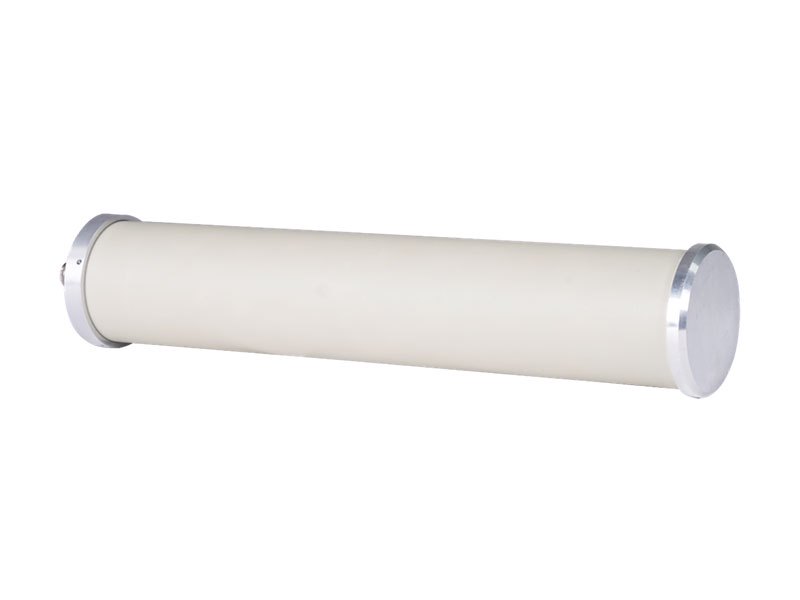

Dual Circular Polarization High-Gain Omnidirectional Antenna

Dual Polarized high gain omnidirectional base station antenna optimized for 5 GHz frequencie.This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.It is actually one antenna have 2 connectors,horizontal polarized and vertical polarized for both ports.Rugged and Weatherproof.

Inquiry

Download

E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

Detailed Description

Description
Dual Polarized high gain omnidirectional base station antenna optimized for 5 GHz frequencie.This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.It is actually one antenna have 2 connectors,horizontal polarized and vertical polarized for both ports.Rugged and Weatherproof.

Technical Specifications

Electrical
Frequency Range	4900-5900MHz
Maximum Gain on the Horizontal Plane	4.9-5.1GHz Vertical & Horizontal @8dBi 5.1G-5.9GHz Vertical & Horizontal@10dBi
V.S.W.R	≤2.0 Max2.5
Radiation	Omni-Direction
Horizontal Beam width	360°
Vertical Beam width	11±3°
Polarization	Vertical & Horizontal
Lightning Protection	DC Grounded
Maximum Inport Power	100W
Impedance	50Ώ
Connector	2xN Female
Antenna Radome Material	Fiberglass
Mount way	Pole
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	Φ66x355mm
Weight	500g
Operating Temperature	-40℃ to+70℃
Fireproof	UL94
Waterproof	IP67
