    Power Dividers / Combiners

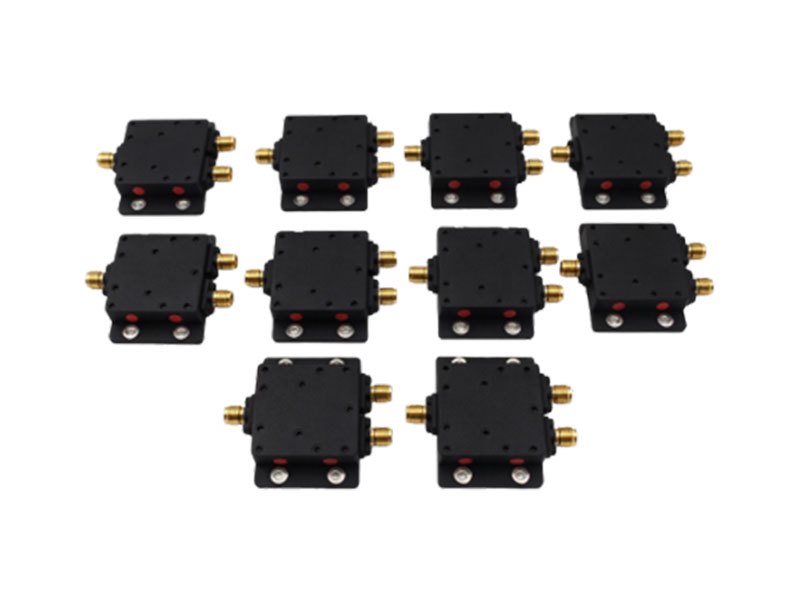

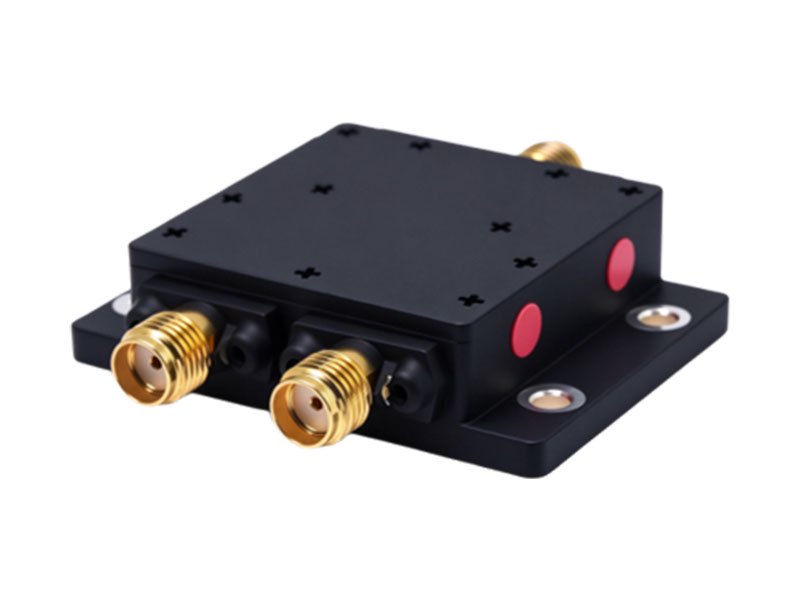

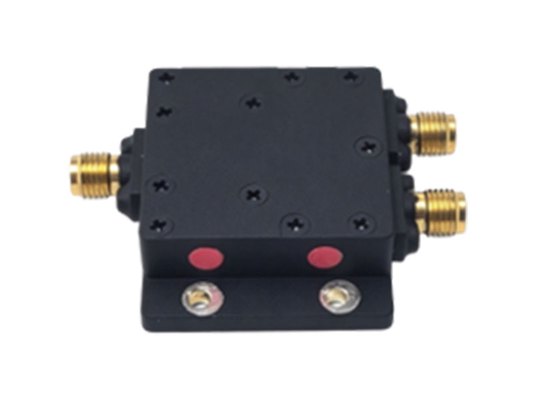

    X-band Power Divider

      X-band Power Divider

      This X-band power divider adopts a Wilkinson structure design and can be used bidirectionally as a power divider and a power combiner. It features low insertion loss, low VSWR, good output amplitude and phase consistency, and high isolation. With a compact structure and high reliability, the product is suitable for radar, satellite communications, RF measurement, phased-array feed networks and other
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    This X-band power divider adopts a Wilkinson structure design and can be used bidirectionally as a power divider and a power combiner. It features low insertion loss, low VSWR, good output amplitude and phase consistency, and high isolation. With a compact structure and high reliability, the product is suitable for radar, satellite communications, RF measurement, phased-array feed networks and other

    Technical Specifications

    Parameters

    Min.

    Typ.

    Max.

    Units

    Center Frequency

    8.0

    GHz

    Bandwidth

    ±650

    MHz

    Insertion Loss

    0.3

    dB

    Isolation

    20

    22

    25

    dB

    VSWR

    1.25:1

    Operating Temperature Range

    -35

    +70

    ˚C

    Main Body Material

    Aluminum Alloy

    Surface Treatment

    Black Paint

    Size

    50*42*11

    mm
