Description

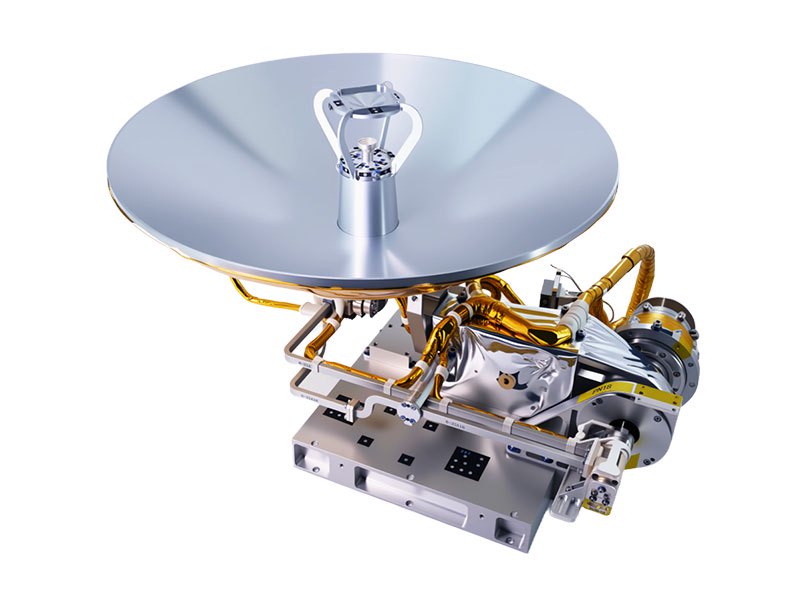

The main functions of the QV-band feed antenna are as follows: (1) Receive attitude control beam control information, control the antenna beam pointing, and cooperate with the attitude control system to complete the staring pointing to the ground gateway station; (2) Receive forward signals; (3) Radiate and output return signals; (4) Equipped with 2 sets of integrated transceiver antennas to support in-orbit relay use; (5) Support transceiver polarization reuse and shared transceiver antenna; (6) Support multi-channel signal transmission and reception via a single antenna. The antenna’s all operating modes are initiated and controlled by the GMS (Ground Mission System). Relevant control commands (sets) are injected into the satellite platform via the TT&C (Tracking, Telemetry and Command) link, and then processed by the satellite platform to complete the control of the payload, which is required to cooperate to implement the above control operations.

Technical Specifications
