    Rotary Joints

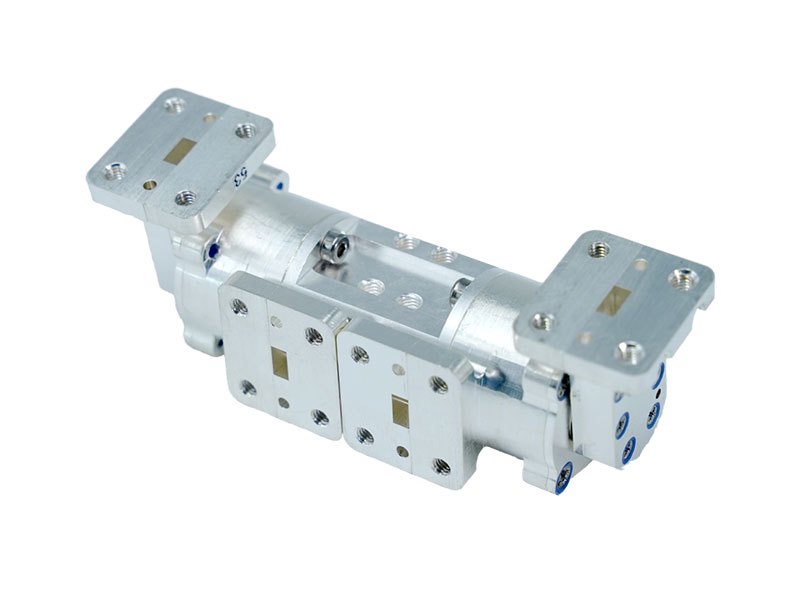

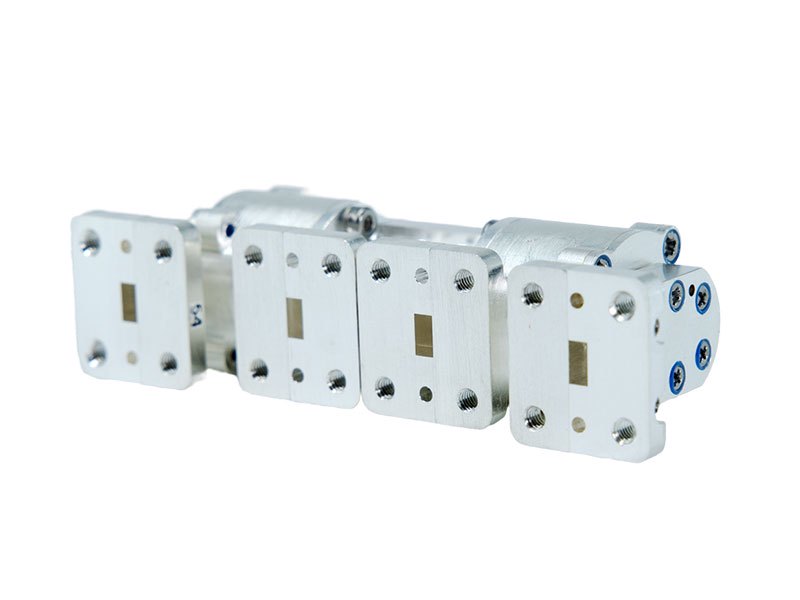

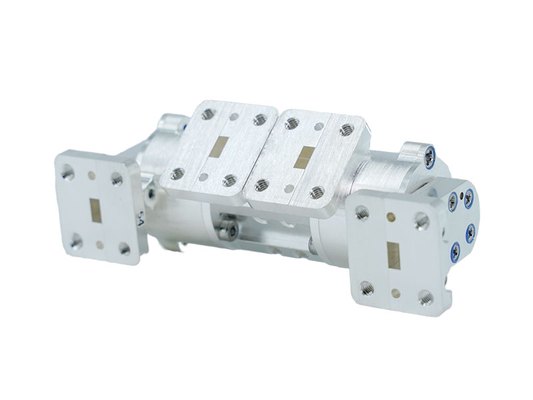

    QV-band Waveguide Rotary Joint

      QV-band Waveguide Rotary Joint

      The QV-band dual-path waveguide rotary joint is designed for spaceborne QV-band feed antenna systems. It enables efficient and stable transmission of microwave signals and features. The product is a custom waveguide flange.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    The QV-band dual-path waveguide rotary joint is designed for spaceborne QV-band feed antenna systems. It enables efficient and stable transmission of microwave signals and features. The product is a custom waveguide flange.

    Technical Specifications

    Parameters

    Min.

    Typ.

    Max.

    Units

    Operating Frequency

    40

    65

    GHz

    Insertion Loss

    0.3

    dB

    VSWR

    1.25

    VSWR Variation

    0.05

    Weight

    90

    g
